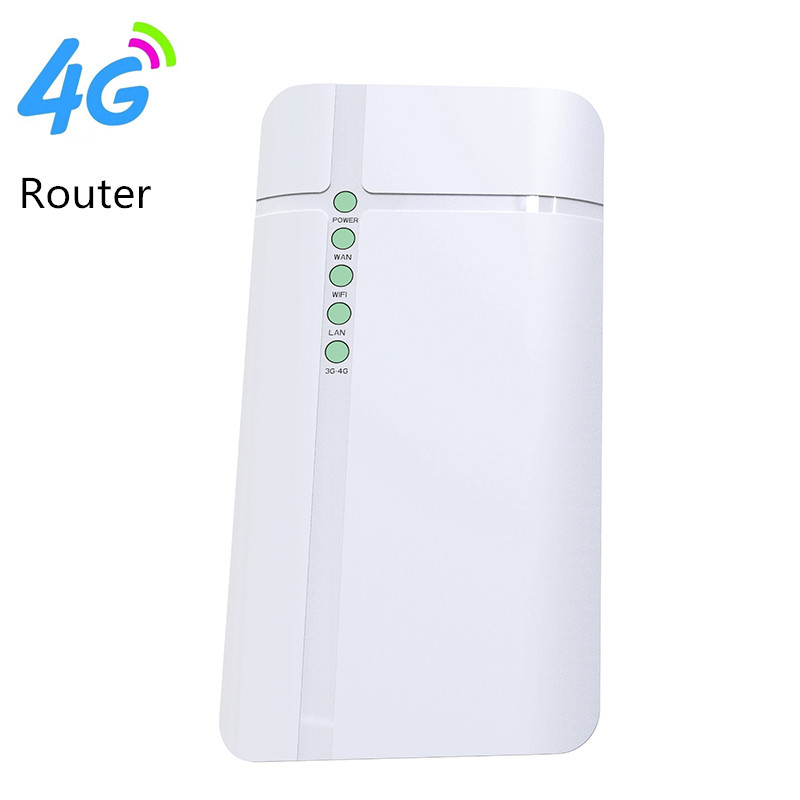

| Router Hardware Specifications |
| Main chipset | HCW9531 |
| Main Frequency | 580MHz |
| Wireless Technology | 802.11b/g/n 300M MIMO technology |
| Flash | 16M |
| DDR | 64Mb |
| Device Interfaces | LAN 10/100Mbps Adaptive Network Interface*1 |
| DC reverse power supply port*1 |
| Powered interface*1 |
| Nano SIM card, small card |
| Antenna | External 5dBi 4G antenna, built-in on-board WiFi antenna |
| Power consumption | ＜7W |
| Keypad | 1 RESET button, long press for 3 seconds to restore factory settings |
| Product Size | 172mm*90mm*60mm |
| RF Parameters | 802.11b/g/n:2.4~2.4835GHz |
| Modulation Mode | 11b: DSS:CCK@5.5/11Mbps,DQPSK@2Mbps,DBPSK@1Mbps |
| 11g:OFDM:64QAM@48/54Mbps,16QAM@24Mbps,QPSK@12/18Mbps,BPSK@6/9Mbps |
| 11n: MIMO-OFDM:BPSK,QPSK,16QAM,64QAM |
| Transmission Rate | 11b: 1/2/5.5/11Mbps |
| 11g: 6/9/12/18/24/36/48/54Mbps |
| 11n: up to 300Mb |
| Receiving Sensitivity | 11b: <-84dbm@11Mbps. |
| 11g: <-69dbm@ 54Mbps. |
| 11n: HT20<-67dbm HT40: <-64dbm |
| Transmitting power | 11b: 18dBm@ 1~11Mbps |
| 11g: 16dBm@ 6~54Mbps |
| 11n: 15dBm@ MCS0~7 |
| Communication standard | IEEE 802.3(Ethernet) |
| IEEE 802.3u(Fast Ethernet) |
| IEEE 802.11b/g/n(2.4G WLAN) |
| Wireless Security | WPA/WPA2 security mechanism (WPA-PSK using TKIP or AES) |
| Network standard/GNSS | EC20 CE FHKG |
| Frequency Band | Customizable |
| GNSS function | GPS, GLONASS, BeiDou/Compass, Galileo,QZSS |
| Transmit Power | Class 4 (33dBm±2dB) for GSM900 |
| Class 1 (30dBm±2dB) for DCS1800 |
| Class E2 (27dBm±3dB) for GSM900 8-PSK |
| Class E2 (26dBm±3dB) for DCS1800 8-PSK |
| Class 3 (24dBm+2/-1dB) for CDMA BC0 |
| Class 3 (24dBm+1/-3dB) for WCDMA bands |
| Class 2 (24dBm+1/-3dB) for TD-SCDMA bands |
| Class 3 (23dBm±2dB) for LTE-FDD bands |
| Class 3 (23dBm±2dB) for LTE-TDD bands |
| LTE Features | Maximum support for 3GPP R8 non-CA Cat 4 FDD and TDD |
| Support 1.4MHz~20MHz RF bandwidth |
| Downlink support MIMO |
| LTE-FDD: Max. downlink rate 150Mbps, max. uplink rate 50Mbps |
| LTE-TDD: Max. downlink rate 130Mbps, Max. uplink rate 35Mbps |
| UMTS Features | Supports 3GPP R8 DC-HSDPA, HSPA+, HSDPA, HSUPA and WCDMA |
| Supports QPSK, 16-QAM and 64-QAM modulation |
| DC-HSDPA: Maximum downlink rate 42Mbps |
| HSUPA: Maximum uplink rate 5.76Mbps |
| WCDMA: Max. downlink rate 384Kbps, max. uplink rate 384Kbps |
| TD-SCDMA Features | Support CCSA Release 3 TD-SCDMA |
| Max. downlink rate 4.2Mbps, max. uplink rate 2.2Mbps |
| CDMA Characteristics | Support 3GPP2 CDMA2000 1X Advanced and 1xEV-DO Rev. |
| EVDO: Max. downlink rate 3.1Mbps, max. uplink rate 1.8Mbps |
| 1 X Advanced : Max. downlink rate307.2Kbps, maximum uplink speed 307.2Kbps |
| Operating/Storage Temperature | -10℃～50℃/-40℃～70℃ |
| Operating/Storage Humidity | 5% to 95% (non-condensing) |
| Operating Mode | 4G access, routing mode, AP mode |
| Bandwidth | 30 people |
| Management Method | Chinese WEB remote management |
| Status | System status, interface status, routing table |
| Wireless Configuration | WiFi basic parameters configuration/blacklist |
| Network Settings | Operating mode |
| LAN port / WAN address setting |
| Traffic Assistant | Traffic statistics/package setting/traffic control |
| System | System properties / password change / backup upgrade / system log / reboot |
| Solar Hardware Specifications |
| Items | Contents |
| model | SMF-60 |
| Solar panel power | 60W |
| Standard voltage | 12V |
| Voltage at Pmax | 18V |
| Current at Pmax | 3.33A |
| Open-Circuit voltage | 21.6V |
| Short- Circuit voltage | 3.67A |
| Battery capacity | 20Ah/30AH |
| Working temperature: | -40℃ to 85℃ |
| IP rating | IP66 |
| Product size | 670mm*540mm*25mm |
| Packing weight | 13kg |
| carton size | 710*600*150mm |
| Case Qty | 1pcs /case |
