The Fastest Fiber Splicing Machine New Generation Optical Fiber Fusion Splicer

Brand Name : Hicorpwell

Model Number : HCW-009

Certification : ISO9001

Place of Origin : China

MOQ : 1 pcs one pcs in lplastic box ,then in the carton

Price : 600-1000 USD per set

Delivery Time : 5-8 days

Packaging Details : 129(W) x 195(D) x 99(H) mm (without protrusion) 1.6kg (without Battery), 2.08kg (with Battery BU-15)

Fiber alignment : Core/cladding alignment / Manual alignment

Language Setting : 10 languages to switch freely

Cladding diameter : 80-150um

splicing time : 6 second with standard SM fiber

Heating Time : 15S

Fiber Holders : 3 in 1 fiber holder, SM, MM, bare fiber, pigtail, rubber-insulated, multi fiber cable

Power Supply : Input AC100-240V 50 / 60HZ, output DC13.5V / 4.8A, the current power mode can be identified, real-time detection of battery power

Boot time : 1 second

Operation Condition : Temperature -15 ~ +50 ℃, humidity: <95% RH (no condensation) Working altitude: 0 ～ 5000m. Resist max. wind speed: ≤ 15m / s

Fiber Cleave Length : Coating less than 250µm：8-16mm Coating less than 250-1000µm:16mm

Contact Now

The Fastest Fiber Splicing Machine New Generation Optical Fiber Fusion Splicer

The machine uses industrial quad-core CPU, fast response, is currently one of the fastest fiber splicing machine in the market;

with 5-inch 800X480 high-resolution screen, the operation is simple and intuitively; and up to 300 times focus magnifications,

making it is very easy to observe the fiber with naked eyes. 6 seconds speed core alignment splicing,

15 seconds heating, the working efficiency increased by 50% compared to ordinary splicing machines.

Under the conditions of rigorous testing, the performance is still outstanding;

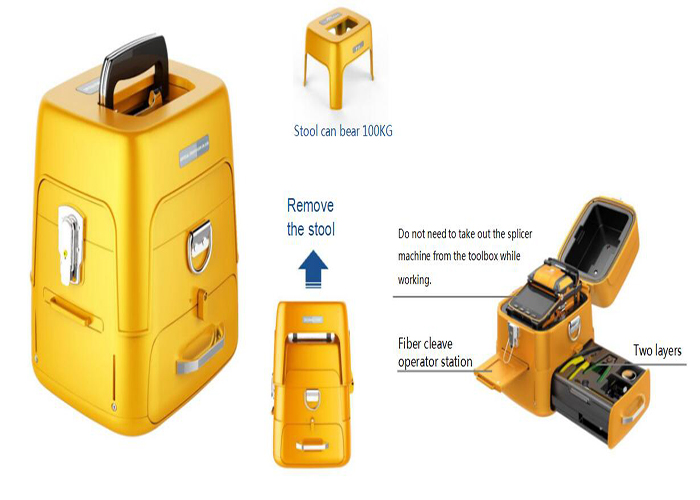

toolbox is small, exquisite, durable, and with unique bench design.

The design of operating platform reflects the humanistic care; unique lighting design, it is convenient for night construction

or repair. Screen brightness is adjustable and it is convenient for outdoor sunshine environment operation. The

core parts are using imported brands, aviation metal body material with exquisite details. With the combination

of advanced technology and design, the new generation of optical fiber fusion splicer will bring you a reliable

and comfortable user experience.

01. Except for the cleaver, miller clamp, stripping pliers, fiber holders and other tools

whose life depends on the frequency of use and the use of the environment. Also

electrodes are consumption material which are not in the warranty.

02. Battery and power adapter are warranty for one year, it is in free warranty where it is

damaged or can not be charged in one year.
