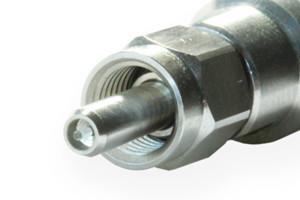

High Power SMA HP-SMA-905 & 905 Connector 230um To 1200um Medical Military Laser Fiber Optic Patch Cord

Brand Name : HICORPWELL

Model Number : Hp-SMA905

Certification : IEC 60794-2-10/11

Place of Origin : China

MOQ : 1set

Price : negotiation

Payment Terms : Western Union, L/C, T/T

Supply Ability : 5000pcs Per Week

Packaging Details : Individual package

Keyword : High Power Fiber HP-SMA905

MOQ : 10 pcs

Leadtime : 5-10 working days

Core : 100um/200um/300um/400um/600um/800um/1000um

Connector Type : HP-SMA905 Energy Fiber Connector

Core Material : Quartz

NA(Numerical Aperture ) : 0.20-0.37

Fiber Type : IR/UV/FSI/DC/PM Fiber

Use : Medical military laser

Contact Now

High Power SMA HP-SMA-905 & 905 Connector 230um to 1200um Medical Military Laser Fiber Optic Patch Cord Cable

Features

  • High precision stainless steel ferrule with counter bore "well tip"
  • Fiber centering sleeve for precision fiber alignment
  • Custom ID sizes up to 1200um
  • Hexagonal or round nut

Applications

  • Laser Surgery
  • Materials Processing
  • Spectrometers
  • Light detection and ranging (LIDAR)
  • Industrial Lasers

HP-SMA-905 Ordering Information

Part Number Description
HP905-H-230-A31
 HP-SMA-905 Connector with Hex Nut,
well tip 230um ID ferrule, black 3mm boot
HP905-H-340-A31
 HP-SMA-905 Connector with Hex Nut,
well tip 340um ID ferrule, black 3mm boot
HP905-H-445-A31
 HP-SMA-905 Connector with Hex Nut,
well tip 445um ID ferrule, black 3mm boot
HP905-H-485-A31
 HP-SMA-905 Connector with Hex Nut,
well tip 485um ID ferrule, black 3mm boot
HP905-H-635-A31
 HP-SMA-905 Connector with Hex Nut,
well tip 635um ID ferrule, black 3mm boot
HP905-H-845-A31
 HP-SMA-905 Connector with Hex Nut,
well tip 845um ID ferrule, black 3mm boot
HP905-H-1040-A31
 HP-SMA-905 Connector with Hex Nut,
well tip 1040um ID ferrule, black 3mm boot

Custom ID sizes are available. Specify exact ferrule inside diameter when ordering connectors
