ODVA LC Waterproof Tactical FO Portable Cable ODVA LC Waterproof Tactical

Product Categories
Shenzhen Hicorpwell Technology Co., Ltd
Contact Now

ODVA LC Waterproof Tactical FO Portable Cable ODVA LC Waterproof Tactical

  • 1
  • 2

Brand Name : HICORPWELL

Model Number : 80m 100m ,200m, 500m ODVA LC Waterproof Tactical Fiber Optic Patch Calbes

Certification : IEC 60794-2-10/11

Place of Origin : China

MOQ : 1 sets (200m Fo Cable )

Price : negotiation

Payment Terms : Western Union, L/C, T/T

Supply Ability : 3000KM Per Week

Packaging Details : Max 200m/ per reel for 5.0 mm OD cable

Cable Type : Outdoor FO cable

Connectors : Customized,LC,FC,SC Connectors

Paintcoat Color : Black or Orange or others

Cable Purpose : Portable Media Usage

Length : Per Reel.150m -250m

Application : Outdoor Communication

Contact Now

Outdoor Optic Fiber Parts FO Portable Cable with IP67 Waterproof Connectors

80m 100m ,200m, 500m ODVA LC Waterproof Tactical Fiber Optic Patch Calbes

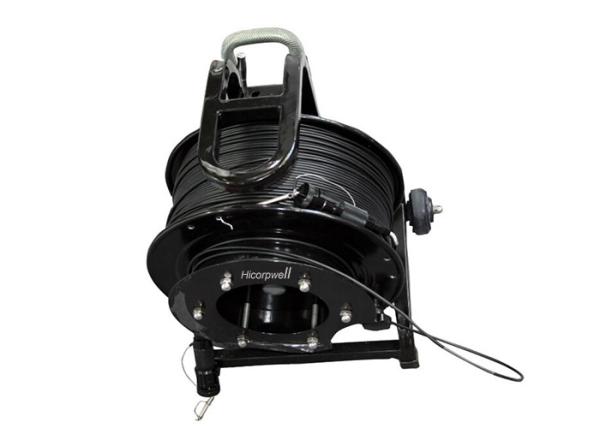

Portable Reel Size : 470X380X510mm Net weight : 8.5kg/pcs.
Capacity for Each Reel :
OD 2.0mm Cable :1000-1100 m.
OD 2.5mm Cable :700-800 m.
OD 3.0mm Cable :500-550 m.
OD 4.0mm Cable :300-330 m.
OD 5.0mm Cable :180-200 m.

Item Single mode Multi mode
Splicing Type UPC APC PC
Insertion Loss <or=0.3dB <or=0.2dB <or=0.3dB
Reture Loss >or=45dB >or=55dB >or=35dB
Repeatability <or=0.1dB <or=0.1dB <or=0.1dB
Temperature -40/+80

Specifications&Performances

Cable
Count		 ITEM CABLE
OD.mm(a)		 S.S.T.
OD.mm(b)		 T.B.O.F.
OD.mm(C)
4F 4.5MM Φ4.5±0.2 Φ2.4±0.02 Φ0.5
6F 4.5MM Φ4.5±0.2 Φ2.6±0.03 Φ0.5
8F 5.0MM Φ5.0±0.2 Φ2.8±0.05 Φ0.5
10F 5.0MM Φ5.0±0.25 Φ3.0±0.05 Φ0.5
12F 5.5MM Φ5.5±0.25 Φ3.2±0.05 Φ0.5
24F 7.0MM Φ7.0±0.3 Φ4.3±0.05 Φ0.5

Cable
Count		 ITEM CABLE OD.
mm(a)		 CABLE
WEIGHT
(kg)		 MAXIMUM TENSILE BEND RADIUS* L.P.
N/100mm
S.T. L.T. Dyn. Sta.
4F 4.5MM Φ4.5±0.2 26.5 800 400 70 35 3000
6F 4.5MM Φ4.5±0.2 38.5 1000 500 100 50 3000
8F 5.0MM Φ5.0±0.2 33.0 1000 501 100 50 3000
10F 5.0MM Φ5.0±0.25 36.0 1000 502 120 60 3000
12F 5.5MM Φ5.5±0.25 39.0 1200 600 150 75 3000
24F 7.0MM Φ7.0±0.3 54.0 1500 750 170 85 3000
