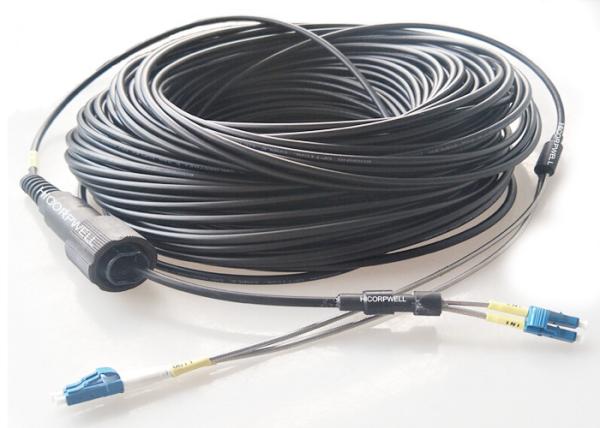

Outdoor 2,4,8,12 Cores FO Tactical IP67 PDLC Waterproof Connectors Pach Cord Cables

Brand Name : HICORPWELL

Model Number : 2,4,8,12 Cores FO Tactical IP67 PDLC Waterproof Connectors Pach Cord Cables

Certification : IEC 60794-2-10/11

Place of Origin : China

MOQ : 10sets

Price : negotiation

Payment Terms : Western Union, L/C, T/T

Supply Ability : 5000pcs Per Week

Packaging Details : Max 100m/ per reel for 5.0 mm OD cable

Cable Type : Tactical IP67 PDLC Waterproof Connectors

Connectors : Customized or LC Connectors

Paintcoat Color : Black

Cable Purpose : Broadcast Media Usage

Length : Per Reel.100m -300m

Application : Outdoor Communication

Cable Cores : 2,4,8,12 Cores

Contact Now

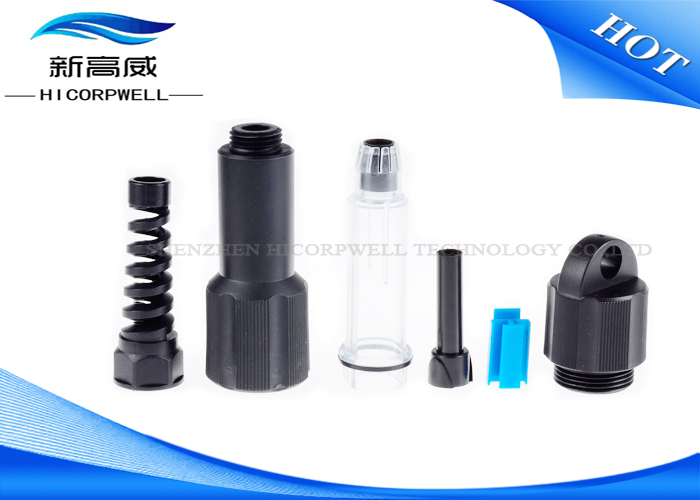

Outdoor 2,4,8 Cores FO Tactical IP67 PDLC Waterproof Connectors

PDLC Waterproof fiber optic patch cord is standard size for Duplex LC Connectors.

The connecting is safe and reliable. Also have the functions of waterproof, dust-proof.

This patch cords widely used in FTTA, Base station, and the outdoor waterproof condition

Features

The PDLC Waterproof patch cord used for outdoor RRU transmitting optical signal and remote fiber feeder etc;

1. Standard Duplex LC connector, well connected with standard LC adaptor

2. Available Single mode and Multimode

3. IP67 protection, salt-mist proof, humidity proof, dust proof

4. Low insertion/return loss, steady optical transmitting.

5. Light weight, waterproof, dustproof, moisture proof, Metal hard housing.

Applications

1. Widely used in FTTA & FTTH

2. Used for 3G 4G base station

3. BBU, RRU, RRH, LTE

Fiber Count

Cable Dimension

mm

Cable Weight

kg/km

Tensile

N

Crush

N/100mm

Min. Bend Radius

mm

 Temperature
Long Term Short Term Long Term Short Term Dynamic Static
2 7.0 42.3 200 400 1100 2200 20D 10D -30-+70

Note: 1. All the values in the table, which are for reference only, are subject to change without notice;

2. The cable dimension and weight are subject to the simplex cable of 2.0 outer diameter;

3. OD is outer diameter of the round cable;

Connector Specification

1 Single mode

ITEM PARAMETER
Connector type LC/UPC, SC/UPC, FC/UPC, ST/UPC LC/APC, SC/APC, FC/APC, ST/APC
Insertion Loss <=0.2db <=0.3db
Return Loss >=50db >=60db
Fiber mode Single-mode
Operating wavelength 1310, 1550nm
Test wavelength 1310, 1550nm
Repeatability <=0.1
Interchangeability <=0.2dB
Durability <=0.2dB
Fiber Length 1m, 2m….. other length optional
Length and tolerance 10cm
Operating Temperature -40C ~ +85C
Storage Temperature -40C ~ +85C

2 Multi mode

ITEM PARAMETER
Connector type LC/UPC, SC/UPC, FC/UPC, ST/UPC Optional
Fiber mode Multi-mode
Operating wavelength 850, 1300nm
Test wavelength 850, 1300nm
Insertion Loss <=0.2db
Return Loss >=35db
Repeatability <=0.1
Interchangeability <=0.2dB
Durability <=0.2dB
Fiber Length 1m, 2m….. other length optional.
Length and tolerance 10cm
Operating Temperature -40C ~ +85C
Storage Temperature -40C ~ +85C

Outdoor 2,4,8,12 Cores FO Tactical IP67 PDLC Waterproof Connectors Pach Cord Cables
